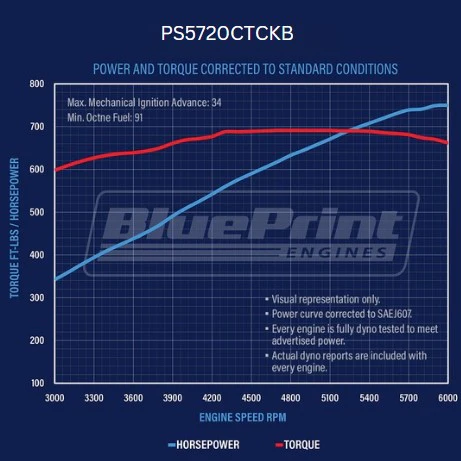

• Horsepower & Torque: 750 Horsepower / 690 ft. lbs. Torque
• Compression Ratio: 10.1:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Tall Deck (Cylinder Deck is Approx .400 taller / wider than OEM block)
• Mech Fuel Pump Provision: Yes
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.500" Bore


Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.500" Stroke
• Forged H-beam 6.535" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8012
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 358cc Intake / 125cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
• Must Verify Clearance of Exhaust / Headers

Cam Specs:

• Hydraulic Roller
• .698 Intake / .698 Exhaust Lift
• 272 Intake / 282 Exhaust Duration
• @ .050-110 Degree Lobe Separation

Also Includes:

• Pro Series Ready Run Distributor - BPP3503BK
• Intake Manifold - BPP572632INT
• Harmonic Balancer - BPP454I
• 1250cfm Holley Carburetor

• Spark Plugs and Wires
• Timing Cover
• Valve Covers
• Oil Pan

• Black Pulley Kit - BPP454FDPSAC4BK

  • Reverse Rotation Short Water Pump
  • 1- Wire 140amp Alternator
  • Peanut Style Air Conditioning Compressor
  • Type II Power Steering Pump with Remote Reservoir

Notes:

• Not for use in pollution-controlled vehicles.

• Must verify clearance of exhaust, shift linkage, steering components etc. before ordering.

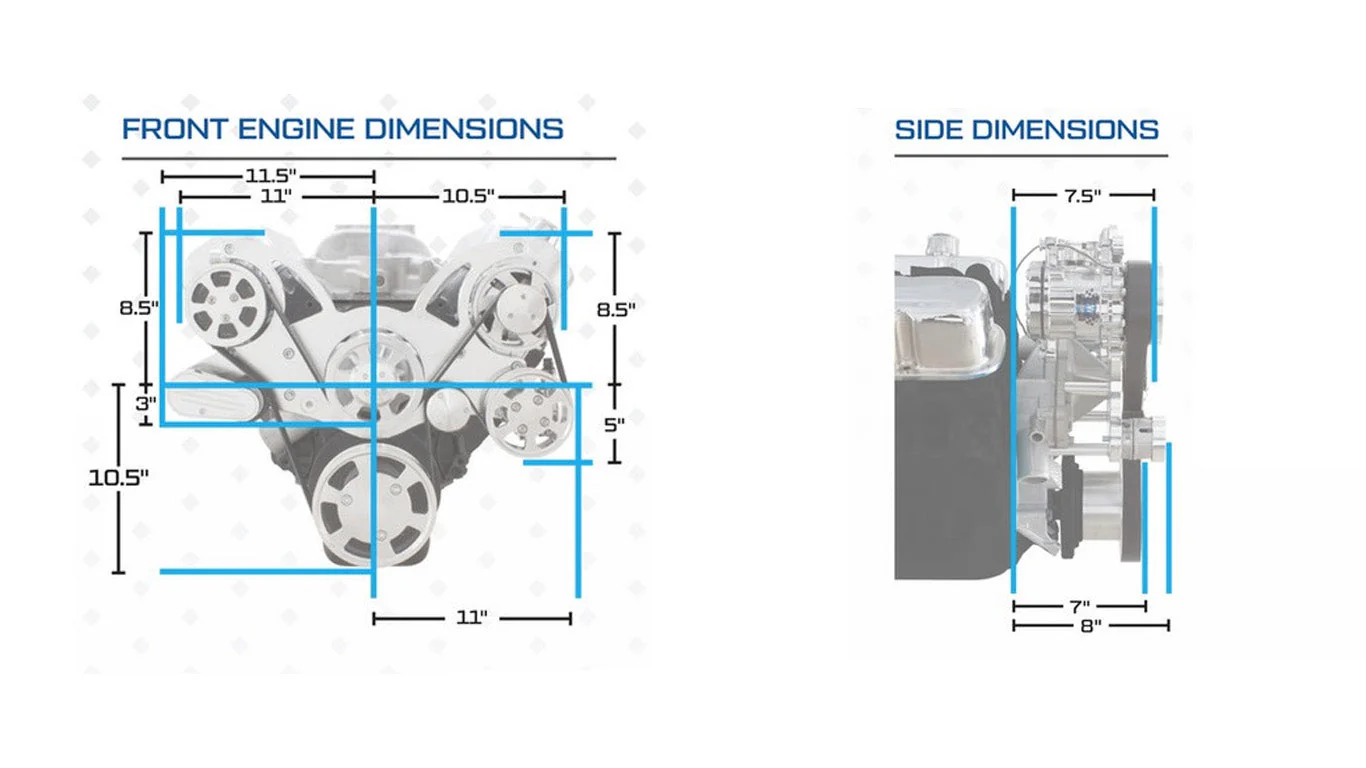

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
