Description:

• Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
• Compression Ratio: 9.5:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crank
• Hypereutectic Pistons

Block:

• BluePrint Engines High-Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000" Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Ford, Machined and Balanced by BluePrint Engines
• 3.000" Stroke
• OEM Type 5.090” Connecting Rods
• Hypereutectic Pistons
• 50oz External Balance

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Holley 600 CFM Street Warrior Carburetor - BPP080457SA

• Fuel Pump
• Intake Manifold
• Water Pump
• Spark Plugs and Wires
• Valve Covers
• MSD Pro Billet Distributor
• Harmonic Balancer
• Painted Oil Pan 7qt

• Thermostat and Thermostat Housing

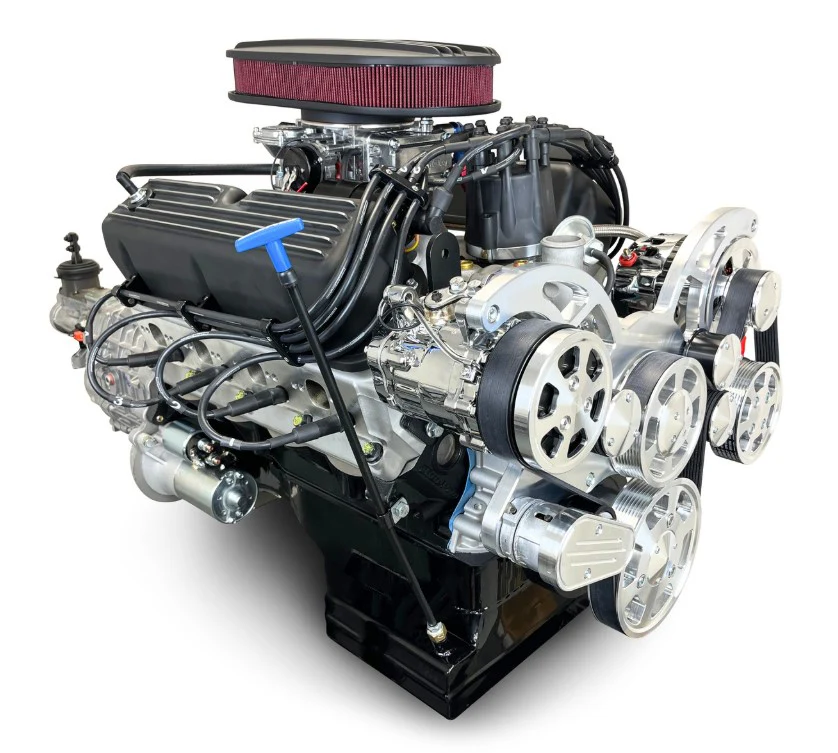

• Polished Front Accessory Drive - BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

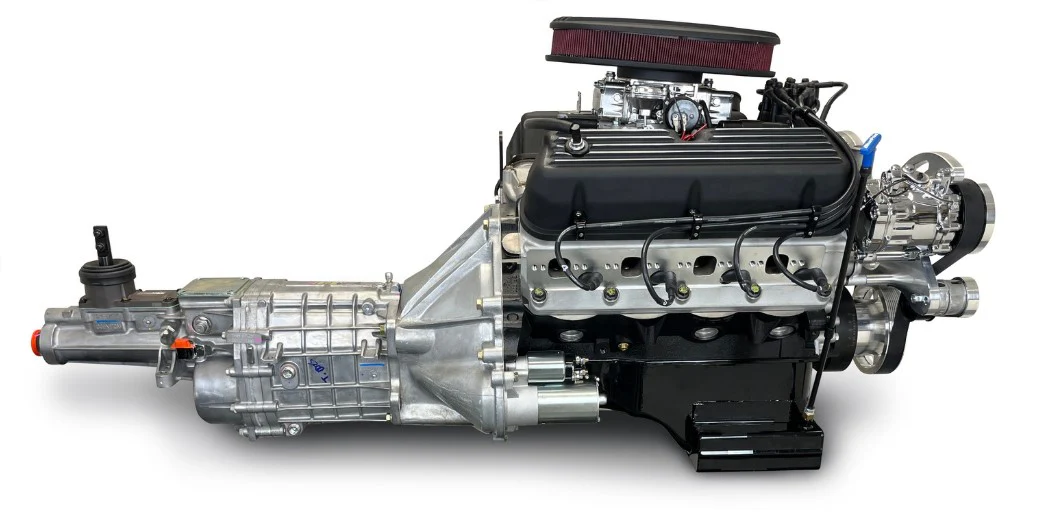

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Aluminum Bell Housing
• Flywheel
• Engine Guard
• Starter
• First Gear Ratio: 2.87:1
• Second Gear Ratio: 1.89:1
• Third Gear Ratio: 1.28:1
• Fourth Gear Ratio: 1.00:1
• Fifth Gear Ratio: 0.81:1

Notes:

• Not for use in pollution-controlled vehicles.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

• This engine is not compatible with factory fuel injection.
• PACKAGE SHIPS ASSEMBLED AS PICTURED.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM

*A bronze distributor gear is NOT recommended on this engine
