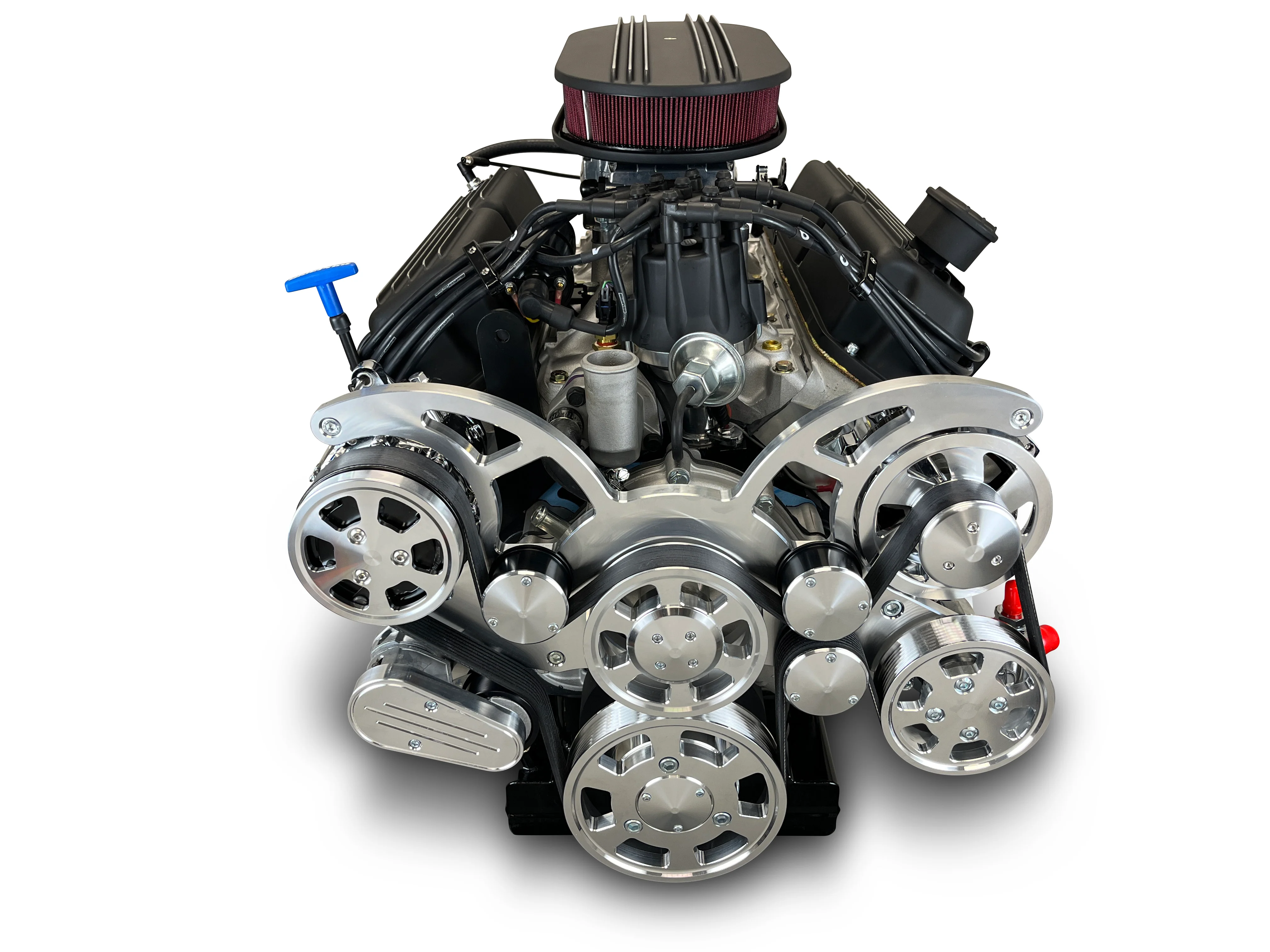

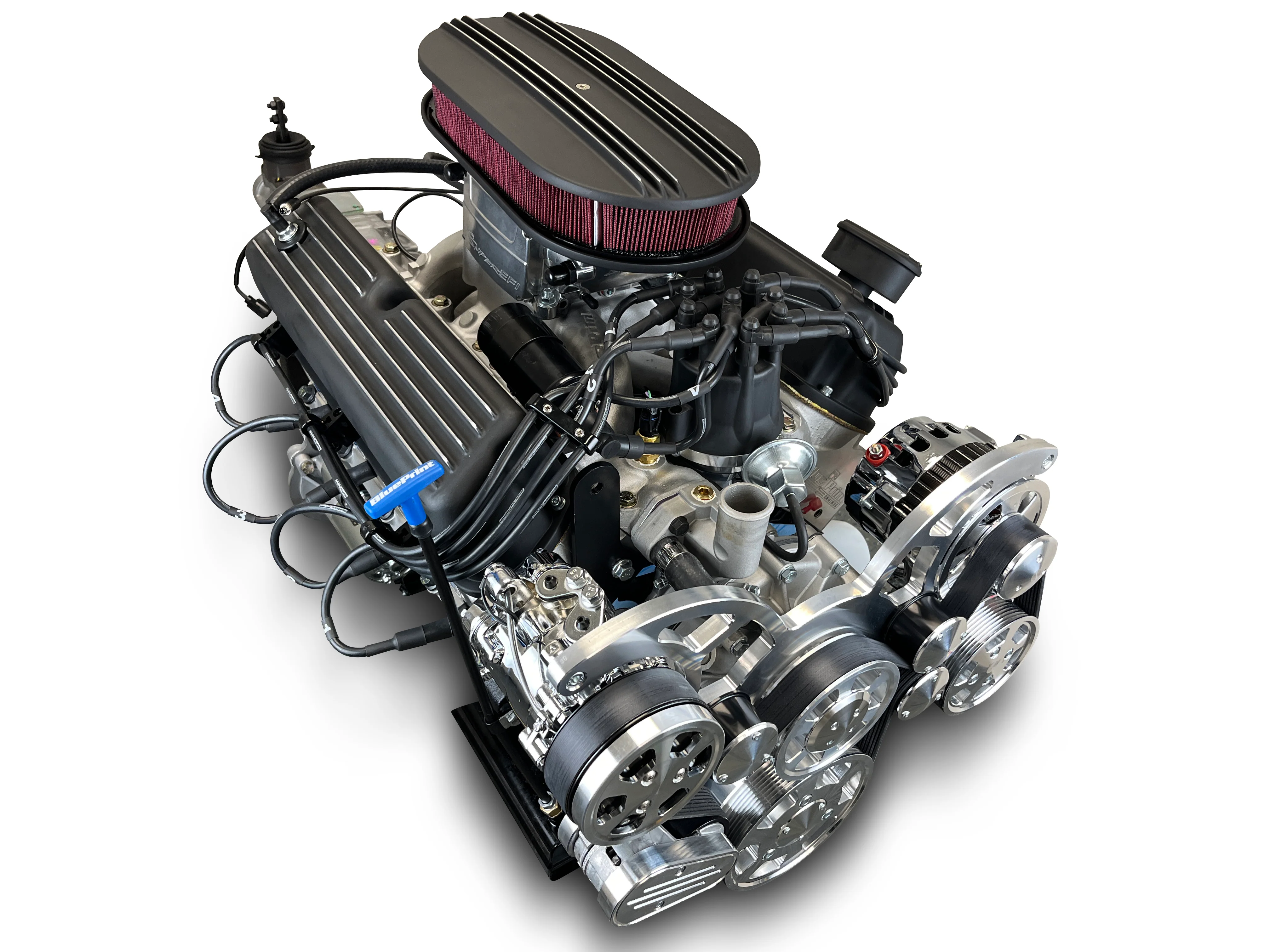

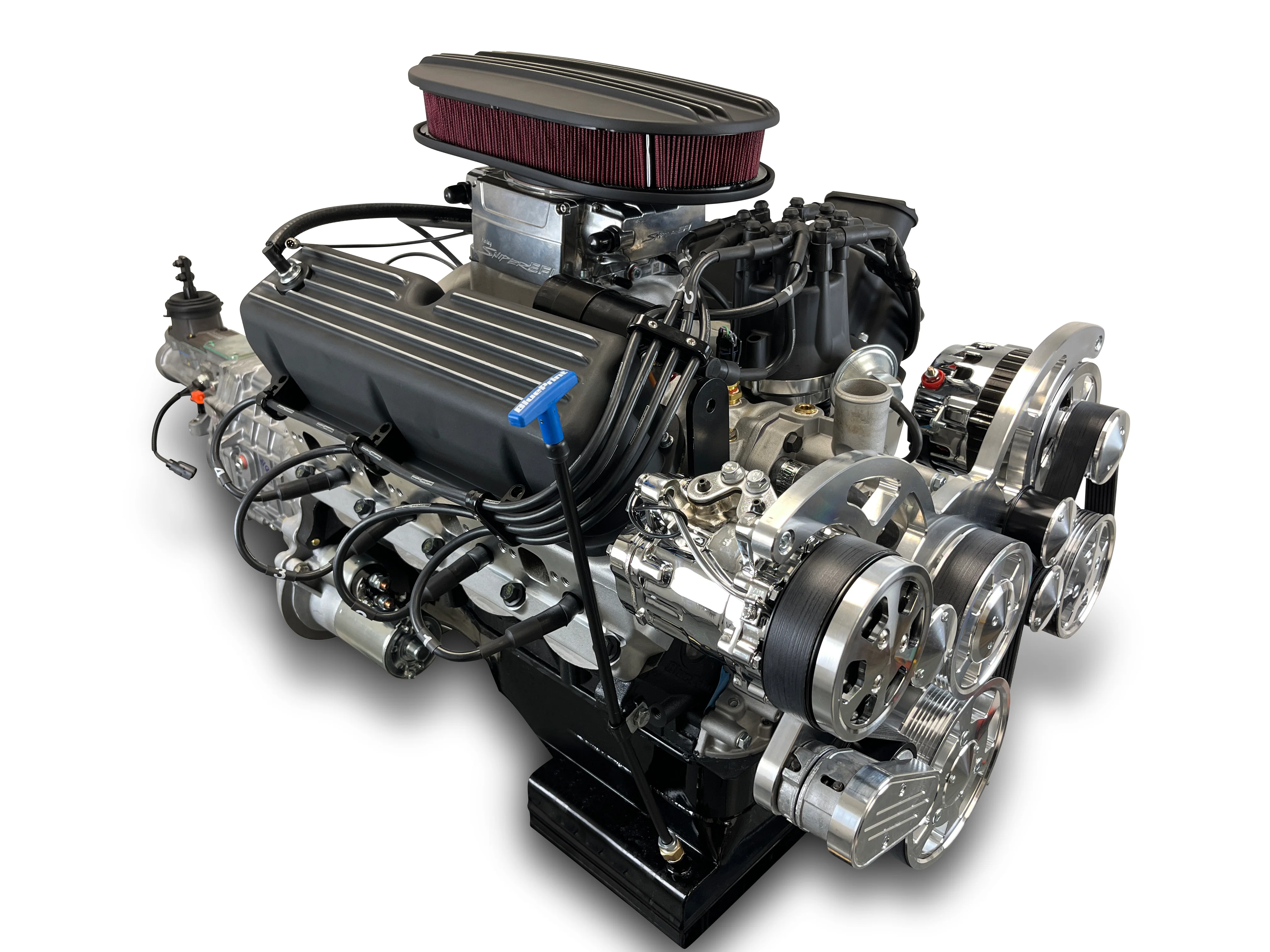

Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Fuel Injected
Description:
- Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
- Compression Ratio: 9.5:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Hypereutectic Pistons
Block:
- BluePrint Engines High-Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4000" Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Ford, Machined and Balanced by BluePrint Engines
- 3.000" Stroke
- OEM Type 5.090” Connecting Rods
- Hypereutectic Pistons
- 50oz External Balance
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP9009
- 60cc Chamber
- 2.02" Intake / 1.60" Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total at 3500 RPM
Also Includes:
- Holley Sniper 2 EFI System - BPP550-510-3XX
- EFI Fuel Pump Kit - BPP5267
- Intake Manifold
- Water Pump
- Spark Plugs and Wires
- Valve Covers
- Distributor
- Harmonic Balancer
- Painted Oil Pan
- Thermostat and Thermostat Housing
- Polished Front Accessory Drive - BPP302FDACPS4
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Aluminum Bell Housing
- Flywheel
- Engine Guard
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
- Not for use in pollution-controlled vehicles
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- PACKAGE SHIPS ASSEMBLED AS PICTURED.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
*A bronze distributor gear is NOT recommended on this engine
