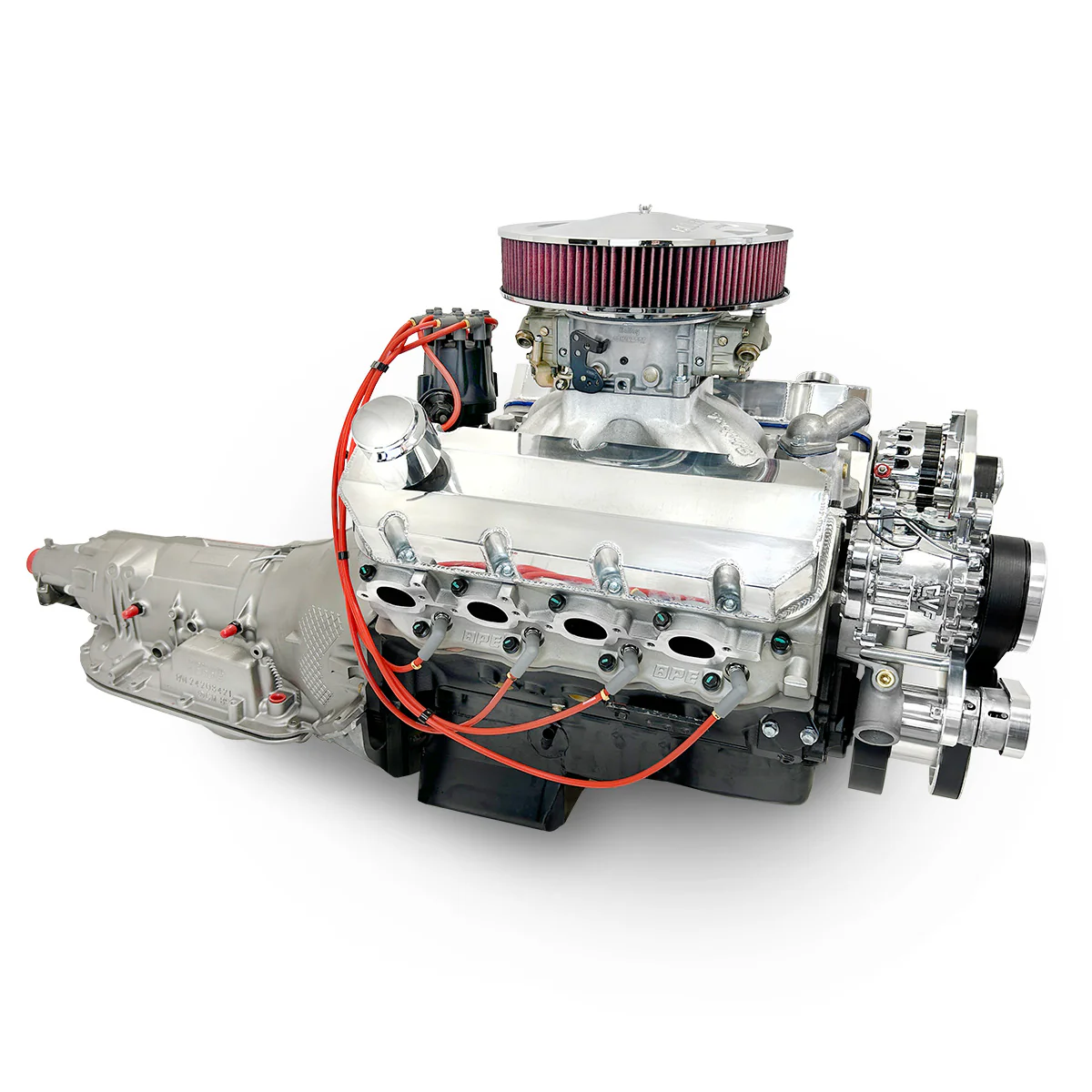

GM Big Block Compatible 598 c.i. Engine and 4L80E Automatic Transmission - 741 Horsepower - Standard Edition Builder Series - Black Pulley Kit - Carbureted
*Pictured with a Polished Front Drive Accessory Kit come with a Black Front Drive Accessory Kit.
Description:
- Horsepower & Torque: 741 Horsepower / 703 ft. lbs. Torque
- Compression Ratio: 10.5:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Mech Fuel Pump Provision: Yes
- 1-Piece Rear Main Seal
- Standard Deck
- 4-Bolt Main
- 4.600" Bore
Rotating Assembly:
- BluePrint Forged Crankshaft
- 4.500" Stroke
- Forged H-beam 6.480" Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8012
- 119cc Chamber
- 2.30" Intake / 1.88" Exhaust Valves
- 358cc Intake / 125cc Exhaust Runners
- Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
- Must Verify Header / Exhaust Clearance
Cam Specs:
- .647 Intake / .647 Exhaust Lift
- 258 Intake / 266 Exhaust Duration
- @ .050-112 Degree Lobe Separation
Ignition Timing:
- 38° Total Timing
Also Includes:
- Pro Series Ready Run Distributor - BPP3503BK
- Thermostat and Thermostat Housing
- Harmonic Balancer - BPP454I
- 1250cfm Holley Carburetor
- Spark Plugs and Wires
- Electric Fuel Pump
- Intake Manifold
- Timing Cover
- Valve Covers
- Oil Pan
- Black Pulley Kit - BPP454FDPSAC4BK
- Reverse Rotation Short Water Pump
- 1- Wire 140amp Alternator
- Peanut Style Air Conditioning Compressor
- Type II Power Steering Pump with Remote Reservoir
Assembled with Complete 4l80e Automatic Transmission Package:
- 4L80E Complete Package with Electronic Controller Included
- W/Lockup Capability
- 3800+ Stall Torque Converter
- Flex Plate
- Starter
4L80E Gear Ratios:
- 1: 2.482
- 2: 1.482
- 3: 1.00
- 4: 0.750
- R: 2.077
Notes:
-

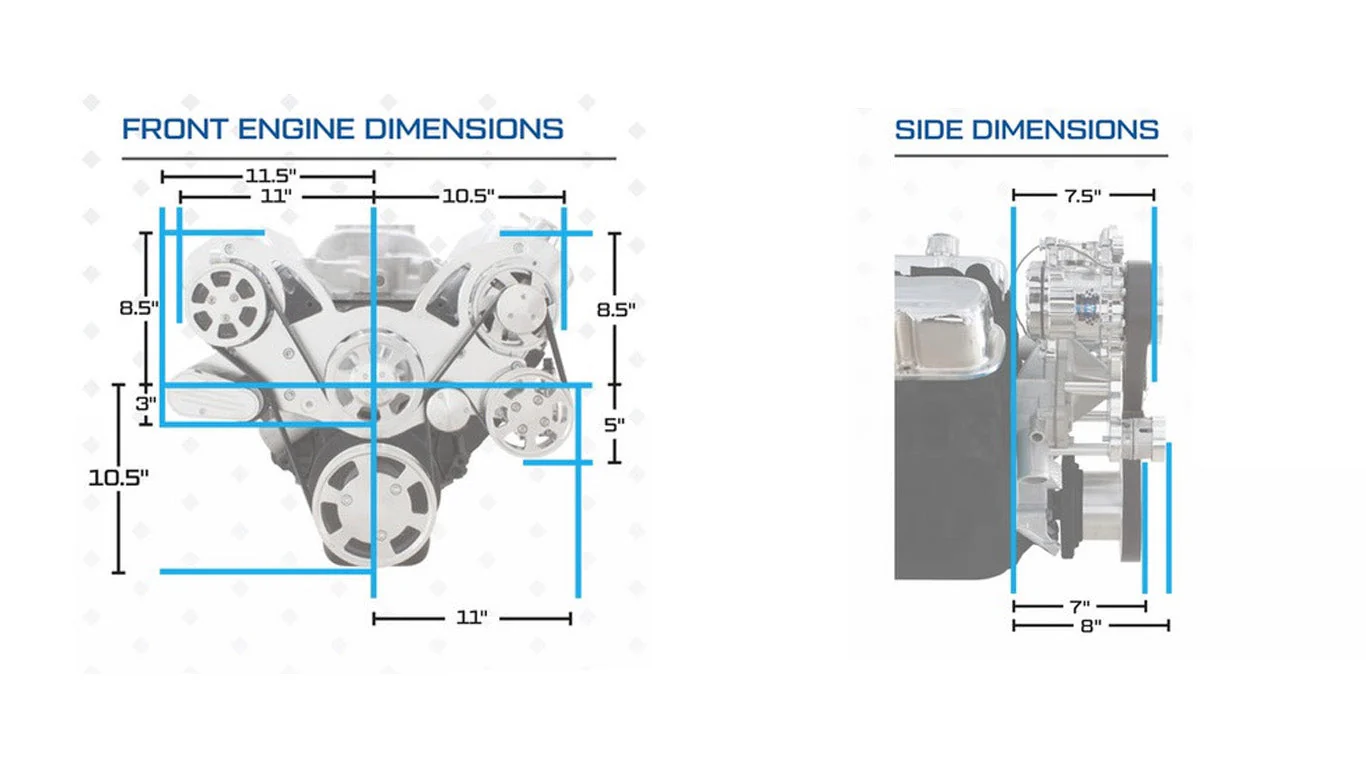

The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
