• Horsepower & Torque: 741 Horsepower / 703 ft. lbs. Torque

• Compression Ratio: 10.5:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block

• Manufactured and Machined in the USA!
• Mech Fuel Pump Provision: Yes
• 1-Piece Rear Main Seal
• Standard Deck
• 4-Bolt Main
• 4.600" Bore


Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.500" Stroke
• Forged H-beam 6.480" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - PS8012
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 358cc Intake / 125cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
• Must Verify Header / Exhaust Clearance

Cam Specs:

• .647 Intake / .647 Exhaust
• 258 Intake / 266 Exhaust Duration
• @ .050-112 Degree Lobe Separation

Ignition Timing:

• 38° Total Timing

Also Includes:

• Pro Series Ready Run Distributor - BPP3503BK
• Thermostat and Thermostat Housing
• Harmonic Balancer - BPP454I
• 1250cfm Holley Carburetor
• Spark Plugs and Wires
• Electric Fuel Pump
• Intake Manifold

• Timing Cover
• Valve Covers
• Oil Pan
• Polished Pulley Kit - BPP454FDPSAC4

  • Reverse Rotation Short Water Pump
  • 1- Wire 140amp Alternator
  • Peanut Style Air Conditioning Compressor
  • Type II Power Steering Pump with Remote Reservoir

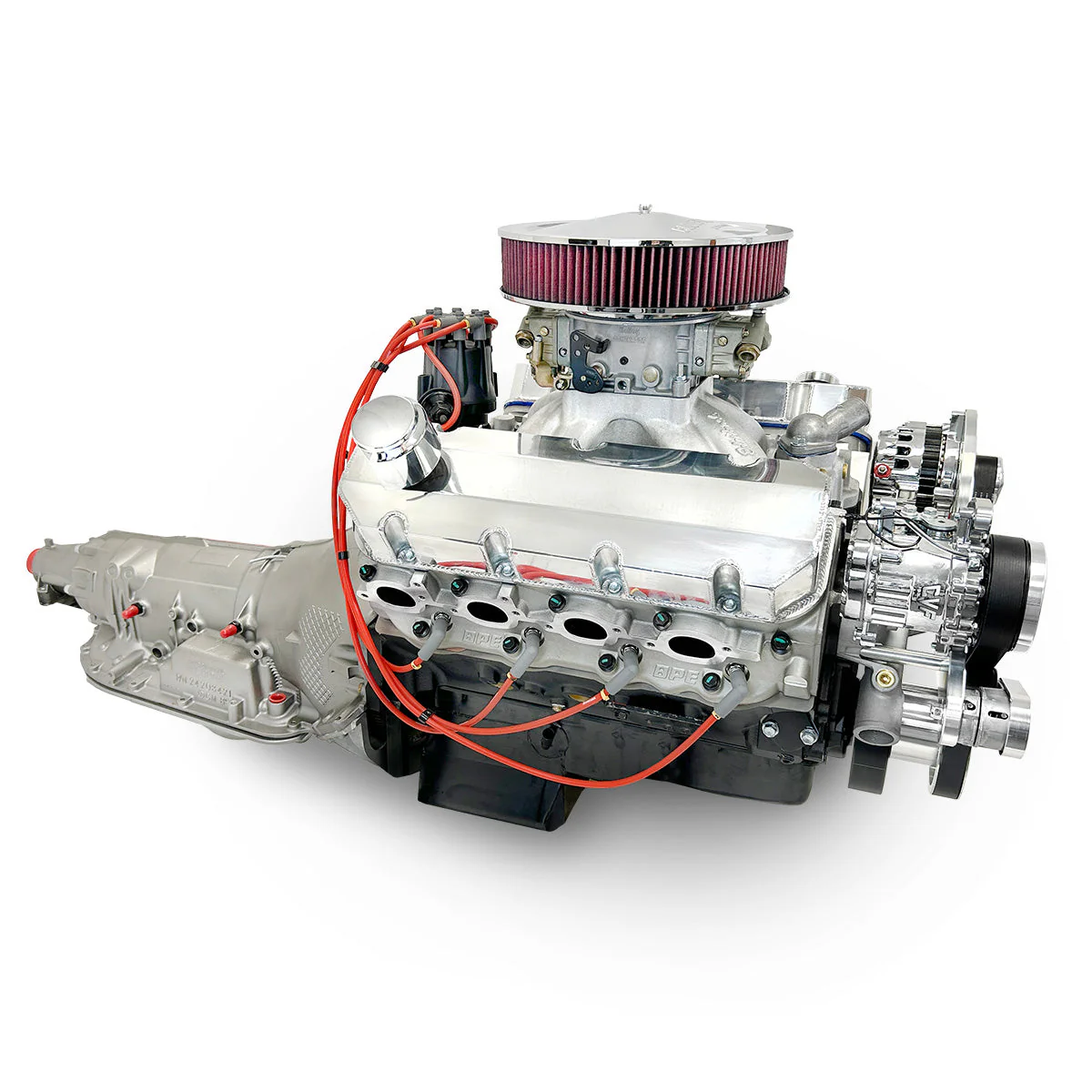

Assembled with Complete 4L80E Automatic Transmission Package:

• 4L80E Complete Package with Electronic Controller Included
• W/Lockup Capability
• 3800+ Stall Torque Converter
• Flex Plate
• Starter

4L80E Gear Ratios:

• 1: 2.482
• 2: 1.482
• 3: 1.00
• 4: 0.750
• R: 2.077

Notes:

• BluePrint Engines 598ci crate engine uses a standard deck height block. So, if you are looking for large cubic inches and replacing an old 396ci BBC, or 454 BBC this engine will bolt right in. Talk about an upgrade!

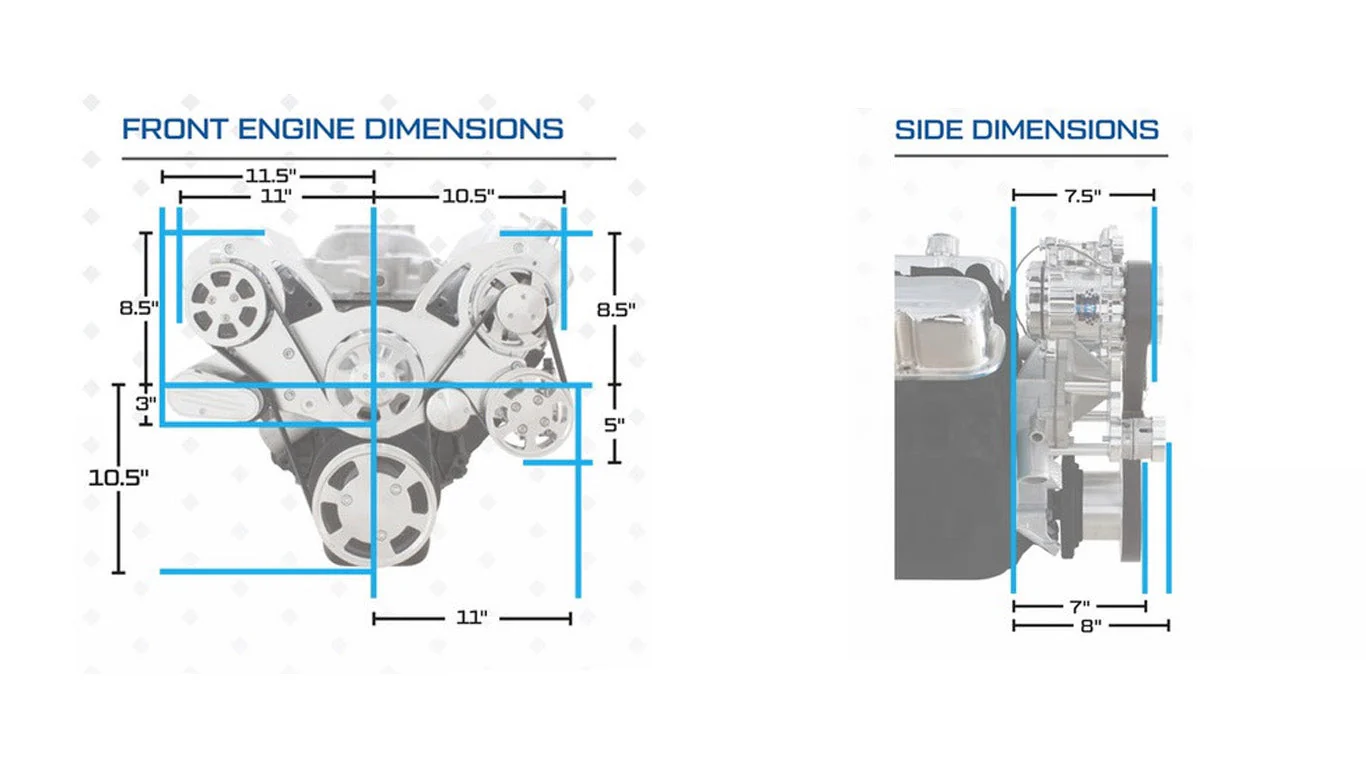

  The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

  • Bolt 724hp in place of your Chevy 454 or 396 BBC!
