Overview:

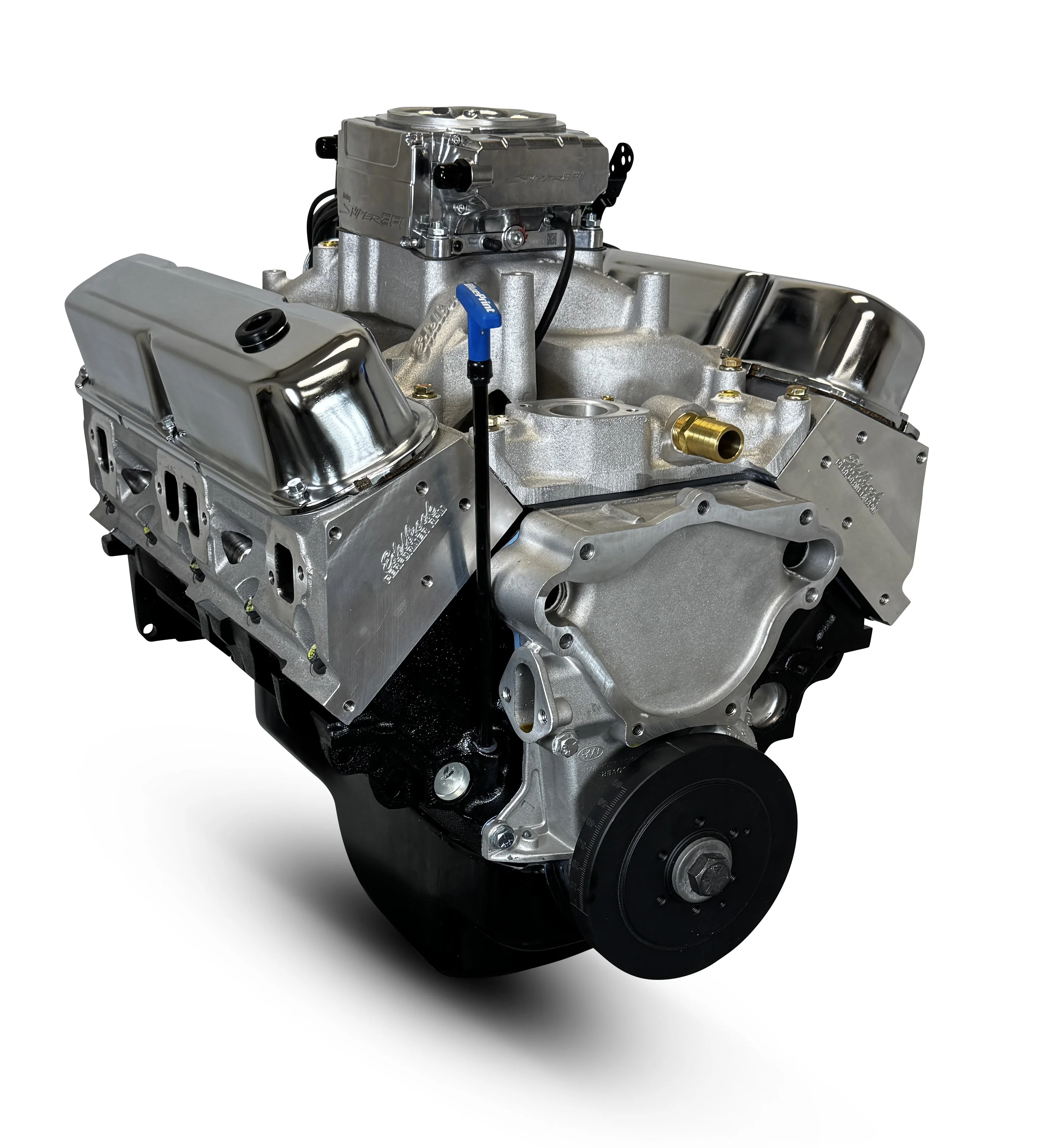

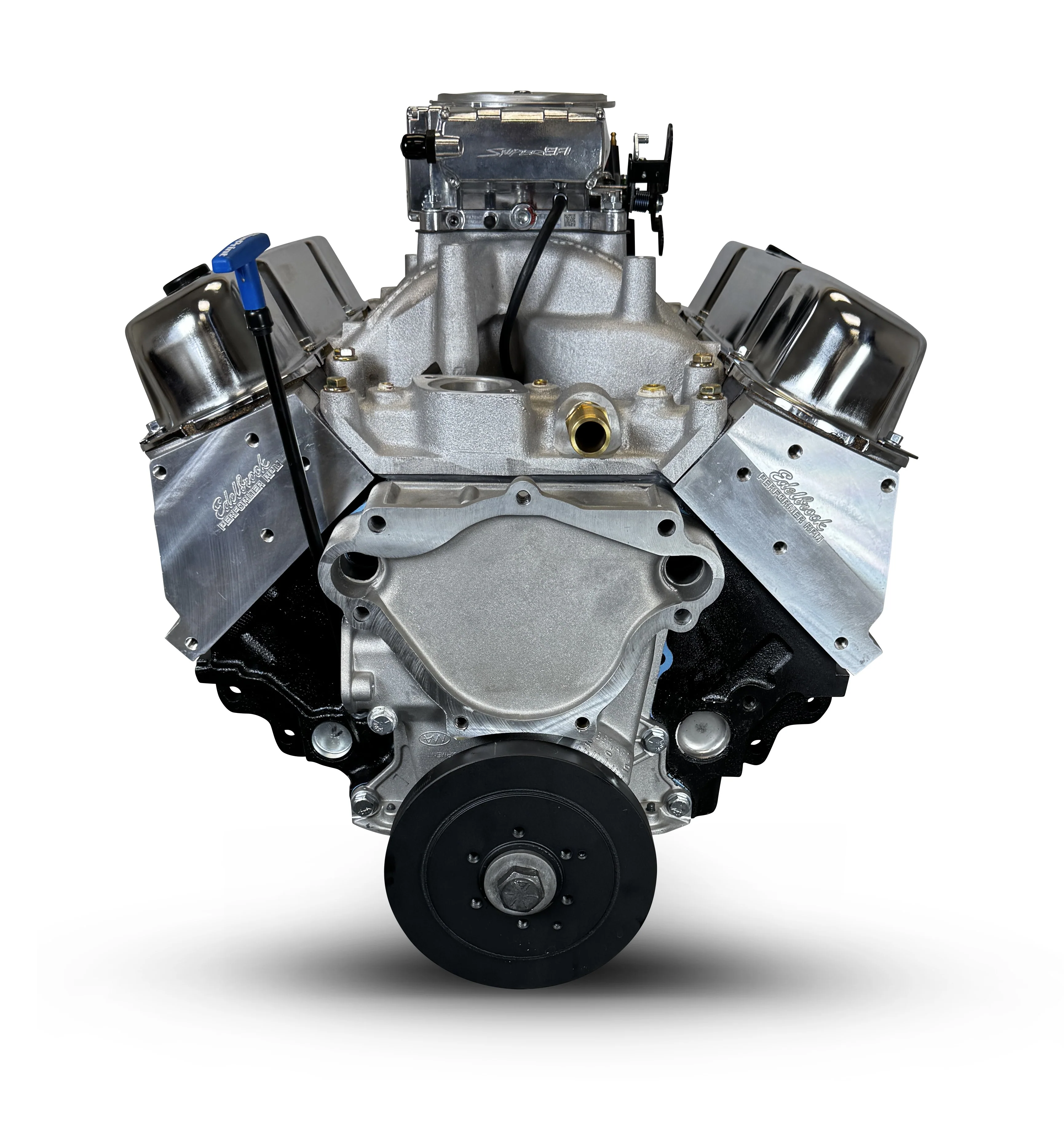

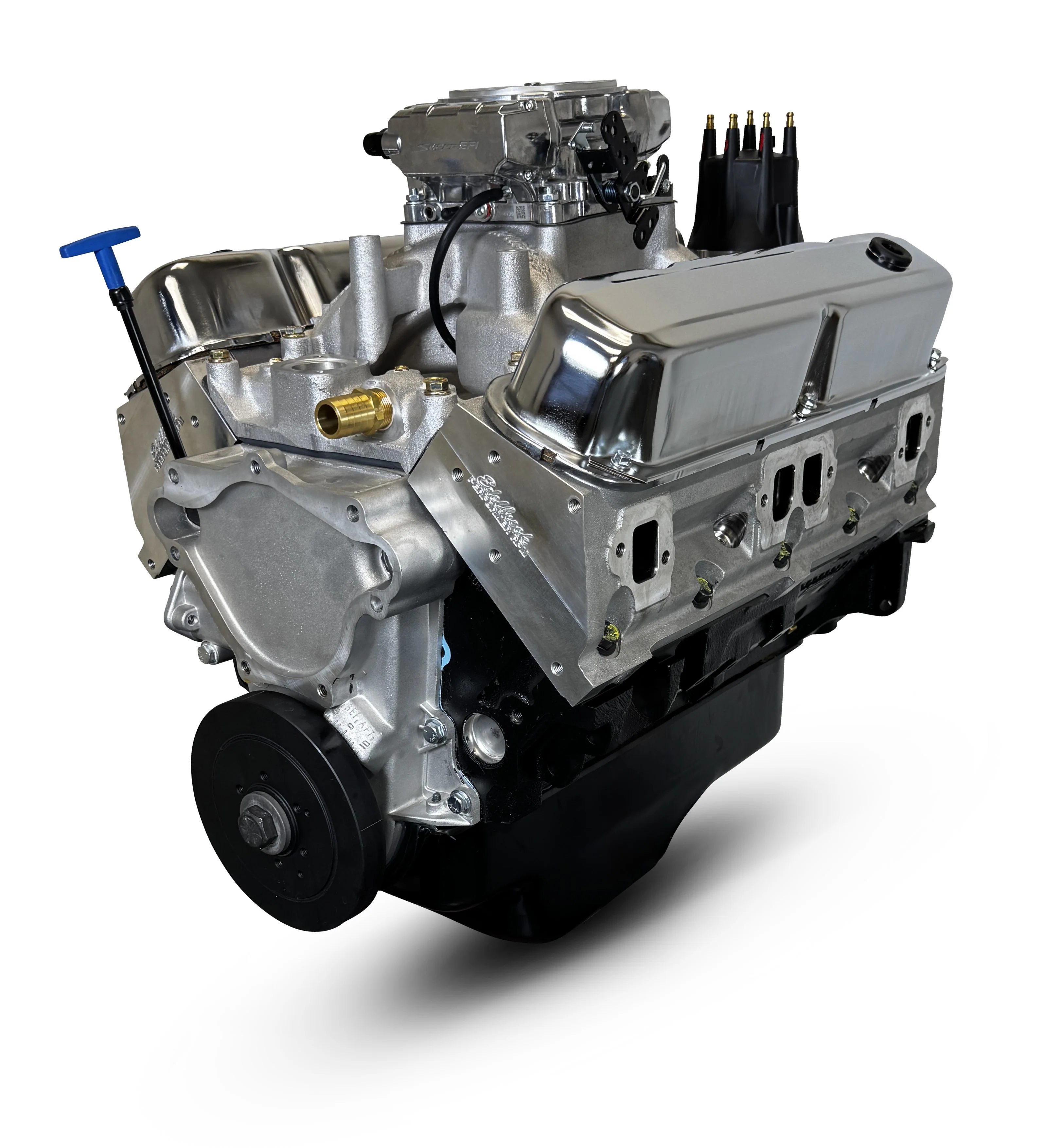

This BluePrint Engines crate engine delivers a powerful 465 horsepower and 494 ft-lbs. of torque with a crisp 10:1 compression ratio, making it a perfect match for street machines and classic muscle car builds. It’s equipped with lightweight aluminum heads and a performance roller cam for improved efficiency and throttle response, while the cast crankshaft and forged pistons provide strength and durability underload. Topped with a Holley Sniper 2 EFI System and intake manifold, this setup delivers reliable fuel flow and proven performance. Included components like the harmonic balancer, distributor, timing cover, valve covers, and oil pan round out a complete, ready-to-run package built for street performance with old-school attitude.

Description:

• Horsepower & Torque: 465 Horsepower / 494 ft. lbs. Torque

• Compression Ratio: 10:1
• Edelbrock Magnum Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crankshaft

• BluePrint Engines Forged Pistons

Block:

• Hand-Picked Seasoned Magnum Block
• Square and Parallel Decked
• Align Honed Main Bearing Bore
• Cylinders Honed on Computer Controlled Machine to Within .0002 Straightness and Roundness
• Cylinders are Sonic Tested for Thickness
• 2-Bolt Main
• 4.040" Bore
• 2-Piece Rear Main Seal
• Mech Fuel Pump Provision: Yes


Rotating Assembly:

• Cast Crankshaft

• 4.000" Stroke

• Forged Magnum 6.123" Connecting Rods w/ 150,000 PSI Bolts
• Forged Pistons
• Externally Balanced Front and Rear


Cylinder Heads:

• BluePrint Engines Assembled and Machined Edelbrock 61769 Casting
• Aluminum Magnum Pattern Cylinder Heads
• 58cc chamber
• Full Roller Rocker Arms

• 2.02" Intake / 1.60" Exhaust Valves
• 176cc Intake / 75cc Exhaust Runners


Cam Specs:

• Hydraulic Roller
• .544 Intake / .541 Exhaust Lift
• 236 Intake / 242 Exhaust Duration
• @.050-110 Degree Lobe Separation


Ignition Timing:

• 34 Degrees Total at 4000 RPM


Also Includes:

• Holley Sniper II EFI - BPP550-510-3XX
• Edelbrock Performance Intake Manifold - BPP7577
• Pro-Series Ready Run Distributor - BPP3603BK
• Mopar Harmonic Balancer - BPP360
• BluePrint Dipstick - BPP9224
• Tall Valve Covers
• Mid Sump, A,B,C,E, Car Oil Pan
• Oil Pump

• Timing Cover


Notes:

• If installing with a Manual Transmission with .750" input shaft, Recommended Pilot bearing is PN FC-69907.
• Recommended Pilot OD is 1.81"
