GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Black Pulley Kit - Fuel Injected

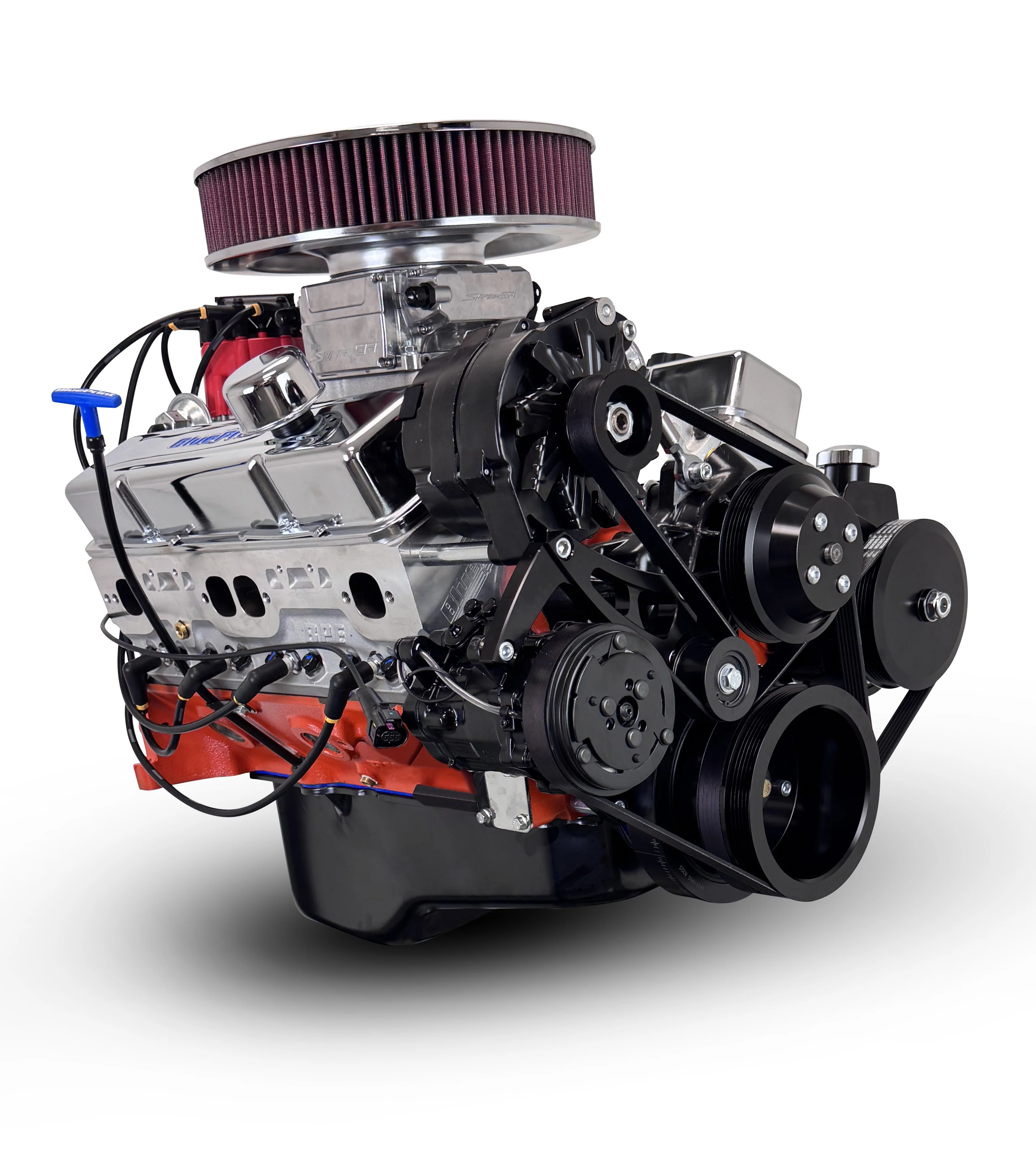

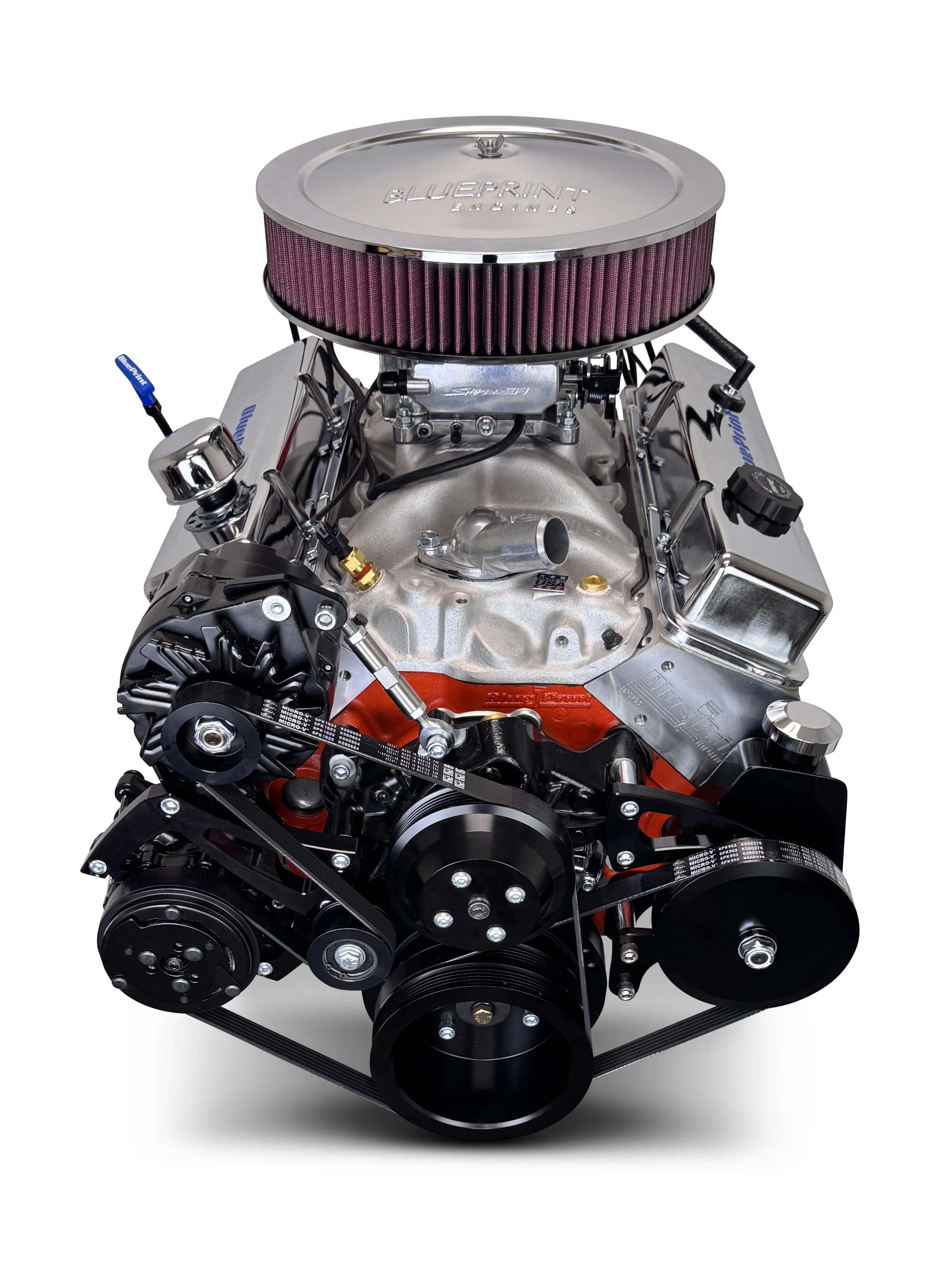

*Carbureted Engine Pictured. Does not include Fuel pump or lines.
Description:
- Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
- Compression Ratio: 10.3:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.125" Bore
Rotating Assembly:
- BluePrint Forged Steel Crankshaft
- 3.750" Stroke
- 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Forged Pistons
- Internally Balanced Front - Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .555 Intake / .576 Exhaust Lift
- 236 Intake / 242 Exhaust Duration
- @.050-110 Degree Lobe Separation
Ignition Timing:
- 10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
- Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Intake Manifold Dual Plane, Satin Aluminum - BPP350VINT
- HEI Ready Run Distributor - BPP350RBK
- Thermostat and Thermostat Housing
- Valve Covers - BPP9518
- Spark Plugs and Wires
- Harmonic Balancer
- Timing Cover
- Air Cleaner
- Oil Pan
Notes:
- This water pump is not rated for use with fan spacers or fan clutches.
- Front Accessory Drive does NOT fit Corvette
-
The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Not for EGR
- The Aftermarket intake manifold and heads installed on this engine may not be compatible with OEM accessory brackets that use intake or exhaust mounted bosses.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
*Carbureted Engine Pictured. Does not include Fuel pump or lines.
Description:
- Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
- Compression Ratio: 10.3:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.125" Bore
Rotating Assembly:
- BluePrint Forged Steel Crankshaft
- 3.750" Stroke
- 5.700" Connecting Rods w/ 150,000 PSI Bolts
- Forged Pistons
- Internally Balanced Front - Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - HP8103
- 64cc Chamber
- 2.08" Intake / 1.60" Exhaust Valves
- 220cc Intake / 67cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .555 Intake / .576 Exhaust Lift
- 236 Intake / 242 Exhaust Duration
- @.050-110 Degree Lobe Separation
Ignition Timing:
- 10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
- Black Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
- Holley Sniper 2 EFI System - BPP550-510-3XX
- Intake Manifold Dual Plane, Satin Aluminum - BPP350VINT
- HEI Ready Run Distributor - BPP350RBK
- Thermostat and Thermostat Housing
- Valve Covers - BPP9518
- Spark Plugs and Wires
- Harmonic Balancer
- Timing Cover
- Air Cleaner
- Oil Pan
Notes:
- This water pump is not rated for use with fan spacers or fan clutches.
- Front Accessory Drive does NOT fit Corvette
-
The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Not for EGR
- The Aftermarket intake manifold and heads installed on this engine may not be compatible with OEM accessory brackets that use intake or exhaust mounted bosses.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
$11,799.00
GM Small Block Compatible 400 c.i. Engine - 500 Horsepower - Deluxe Dressed - Black Pulley Kit - Fuel Injected—
$11,799.00
