Description:

• Horsepower & Torque: 500 Horsepower / 510 FT. LBS. Torque
• Compression Ratio: 10.3:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block

• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.125" Bore

Rotating Assembly:

• New BluePrint Forged Crankshaft
• 3.750" Stroke
• Forged I Beam 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Forged Pistons
• Internally Balanced Front - Externally Balanced Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP8103
• 64cc chamber
• 2.08" Intake / 1.60" Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .555 Intake / .576 Exhaust Lift
• 236 Intake / 242 Exhaust Duration
• @ .050-110 Degree Lobe Separation

Ignition Timing:

• 10-16° Initial and Total Timing 32-34° at 3500 RPM

Also Includes:

• Intake Manifold Dual Plane, Satin Aluminum - BPP350VINT
• Pro Series Ready Run Distributor - BPP3503BK
• Holley Sniper 2 EFI System - BPP550-510-3XX
• Thermostat Housing - BPP10108470
• EFI Fuel Pump Kit - BPP5267
• Thermostat - BPP180TS
• Spark Plugs - BPP7938
• Plug Wire Separators
• Spark Plug Wires
• Timing Cover
• Valve Covers

• Oil Filter
• Oil pan
• Polished Front Accessory Drive - BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Bell Housing
• Billet Flywheel
• Starter
• First Gear Ratio: 2.87:1
• Second Gear Ratio: 1.89:1
• Third Gear Ratio: 1.28:1
• Fourth Gear Ratio: 1.00:1
• Fifth Gear Ratio: 0.81:1

Notes:

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

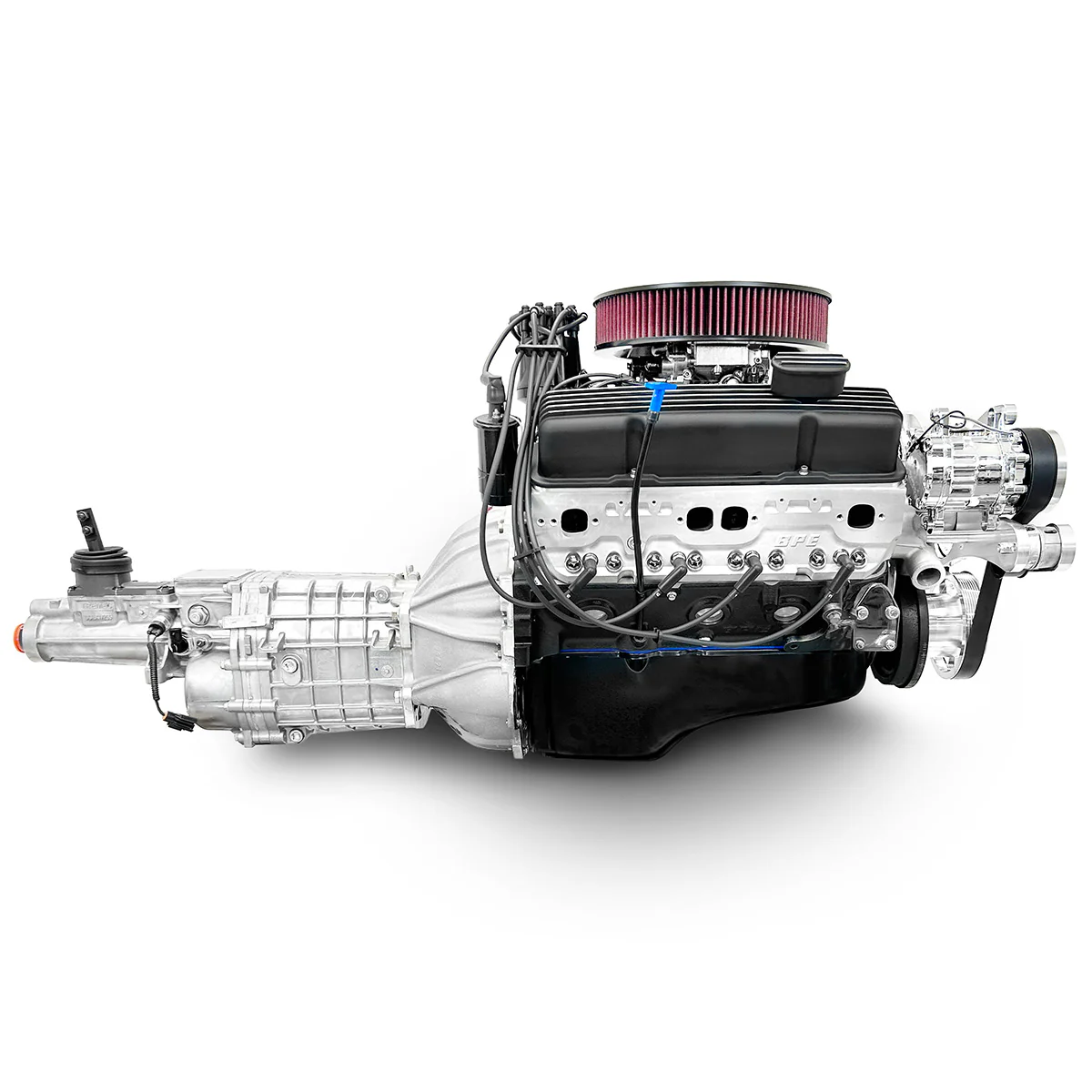

• Package Ships assembled as pictured.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
