GM LS Compatible 427 c.i. Engine and T56 Manual Transmission - 830 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System
Overview:
BluePrint Engines unleashes serious LS power with this 427 c.i. Builder Series package, delivering a massive 830 horsepower and paired perfectly with a tough, street-proven T56 manual transmission. This combo is built for the enthusiast who wants modern reliability with race-ready punch, all controlled by the Holley Terminator X EFI system for crisp tuning, fast starts, and razor-sharp throttle response. Precision machining, premium internals, and BluePrint’s Pro-series build quality ensure the strength to handle every bit of boost, rpm, and abuse you throw at it. For builders chasing a turnkey LS powerhouse that’s ready to hit the streets, the strip, or anywhere in between, this 427/T56 package is pure, modern muscle, delivered.
Description:

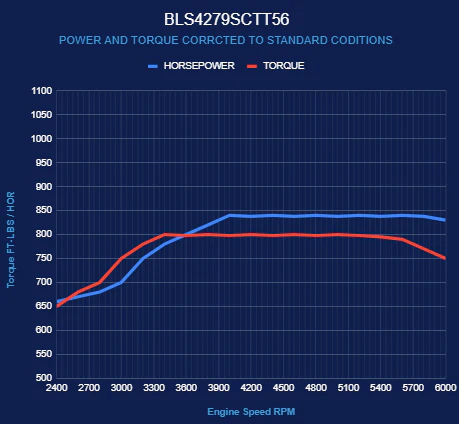

- Horsepower & Torque: 830 Horsepower / 800 ft. lbs. Torque
- Compression Ratio: 9.5:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Extended Cylinder Skirt
- Priority Main Oiling
- 6-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Utilizes OEM LS3 Front and Rear Covers
Rotating Assembly:
- New Forged Crankshaft
- 4.125" Stroke
- Forged 6.125" Connecting Rods
- Forged Pistons
- Front and Rear Internally Balanced
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - PS8015
- 70cc Chamber
- 2.165" Intake / 1.590" Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .624 Intake / .624 Exhaust Lift
- 239 Intake / 255 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing:
- ECM Supplied with Calibration
Holley Terminator X Max Specific Features and Benefits:
- Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
- On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
- Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
- Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
- 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
- Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
- Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
- Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.
Also Includes:

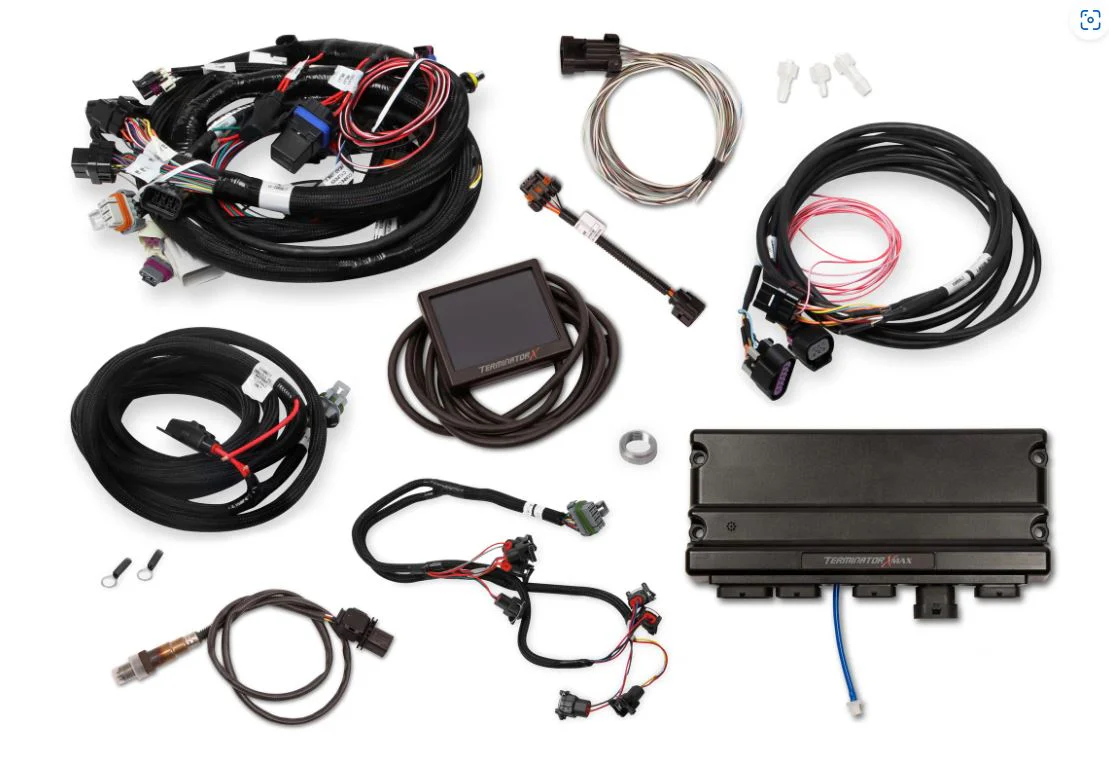

- Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System
- 2.65 Liter Magnuson TVS 2650 Supercharger
- Upgraded Mototron S107 Injectors
- Electronic Fuel Injection
- Coil Packs
- Valve Covers
- Oil Pan
- Drive by Wire Throttle Body
- Timing Cover
- Spark Plugs and Wires
- Harmonic Balancer
- Water Pump
Assembled with Complete T56 Six Speed Transmission Package:
Includes the following:
- McLeod Super Steel Pro Dual Disk Clutch
- Steel Bell Housing
- Billet Flywheel
- Engine Guard
- Starter
- First Gear Ration: 2.66:1
- Second Gear Ratio: 1.78:1
- Third Gear Ration: 1.30:1
- Fourth Gear Ration: 1.00:1
- Fifth Gear Ration: 0.80:1
- Sixth Gear Ration: 0.63:1
Notes:
- This Holley EFI Equipped engine has a fully calibrated ECU by BluePrint Engines. Please DO NOT follow the Holley EFI manual for the calibration of the ECU.
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
Not for use in pollution-controlled vehicles or in dry sump applications.
- BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
- Engine/Trans Package Ships assembled
