Overview:

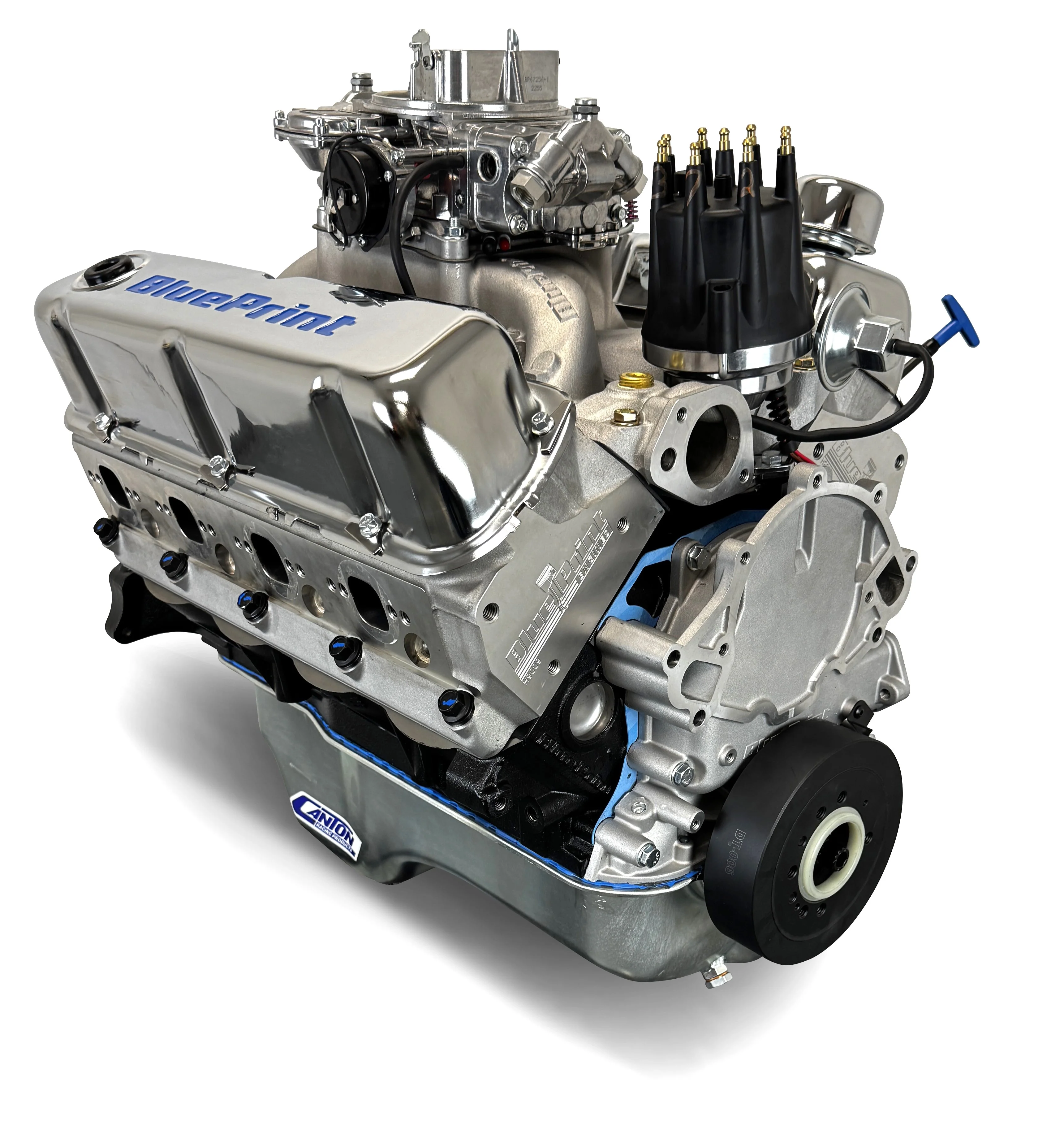

Built for the strip and bred with classic Ford muscle, this 302-based drag race engine delivers the perfect mix of old-school attitude and modern performance upgrades. A forged pistons with a cast crank and race-ready valvetrain give it the strength to live at high RPM, while lightweight aluminum heads and a roller cam setup help it breathe hard and pull strong through the powerband. Topped with a carb and dual-plane intake, and finished with all the right race hardware, this engine is balanced, dialed in, and ready to drop in and run. It’s a no-nonsense small-block built for drivers who want throttle response, reliability, and that unmistakable Ford edge.

Description:

• Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engins Cast Crankshaft

• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Improved Water Jacket Design
• 1-Piece Rear Main Seal
• 4-Bolt Main
• Priority Main Oiling
• 4.000" Bore


Rotating Assembly:

• Cast Crankshaft
• 3.400" Stroke
• Forged 5.400" I-Beam Connecting Rods
• Forged Pistons - 9cc
• 28oz Externally Balanced Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads - HP9009
• 60cc Chamber
• 2.02" Intake / 1.600" Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners


Cam Specs:

• Hydraulic Roller Cam
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation


Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total


Also Includes:

• Holley Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke
• Timing Cover - BPP302351TC
• Intake Manifold - BPP302INT

• Harmonic Balancer - BPP28
• Dual/Rear Sump Oil Pan

• Distributor - BPP3023BK

• Valve Covers - BPP9237


Notes:

• This carburetor has been adjusted to run on the BluePrint Engines dyno. We recommend adjusting your carburetor to current elevation and operating needs.
• Must flush vehicle fuel lines prior to engine installation.
